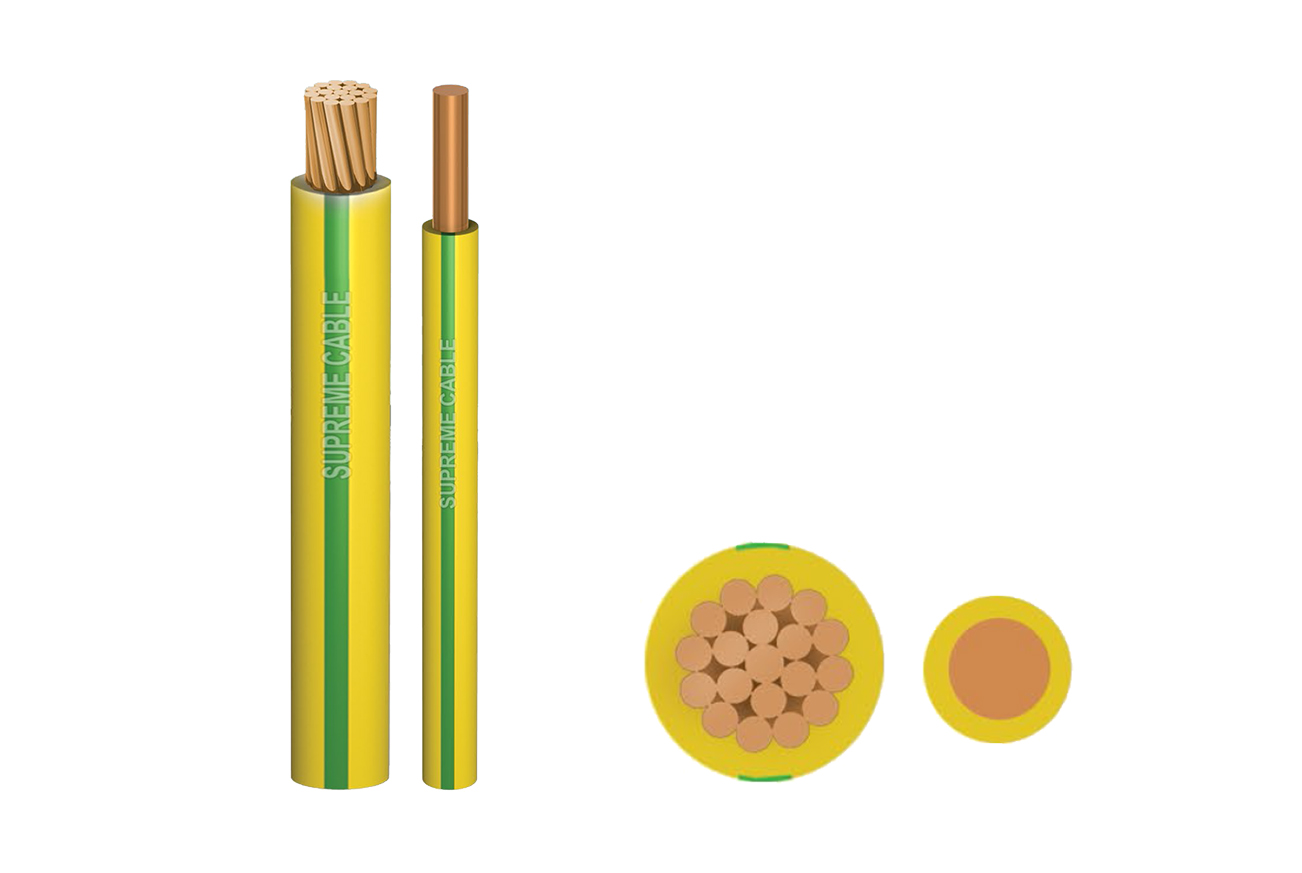

Cu/PVC (NYA) – 450/750 VOLT
IEC 60227.3/SNI 04-6629.3
Single Core, Copper Conductor and PVC Insulated Cable
Main Uses : Used for grounding cable or internal wiring in dry location

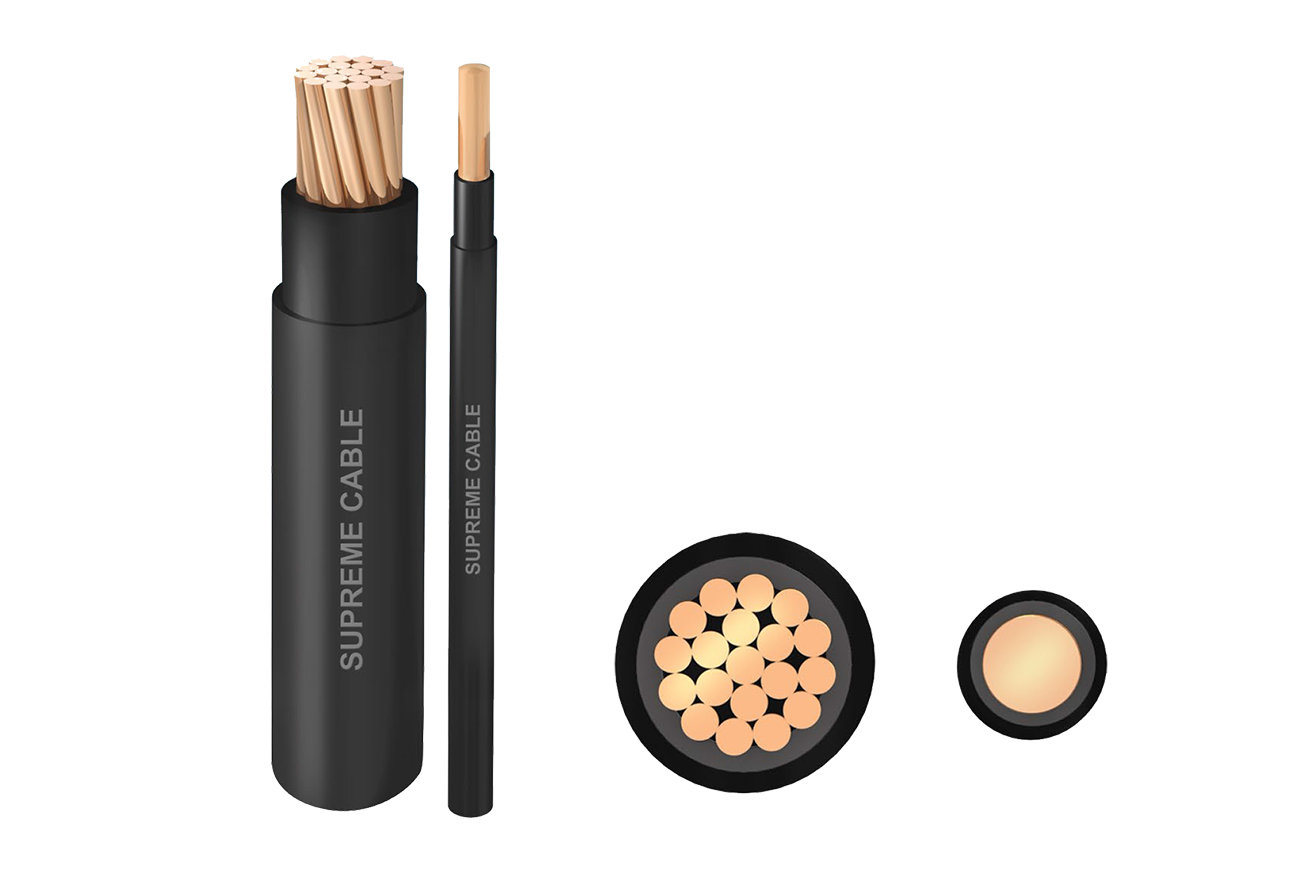

Cu/PVC/PVC (NYY) 0.6/1(1.2) kV
IEC 60502-1/ SNI IEC 60502-1
Copper conductor, PVC insulated and PVC sheathed cable
Main Uses : used for indoor, in ducts installation for laying in the ground, where not sustain mechanical damage

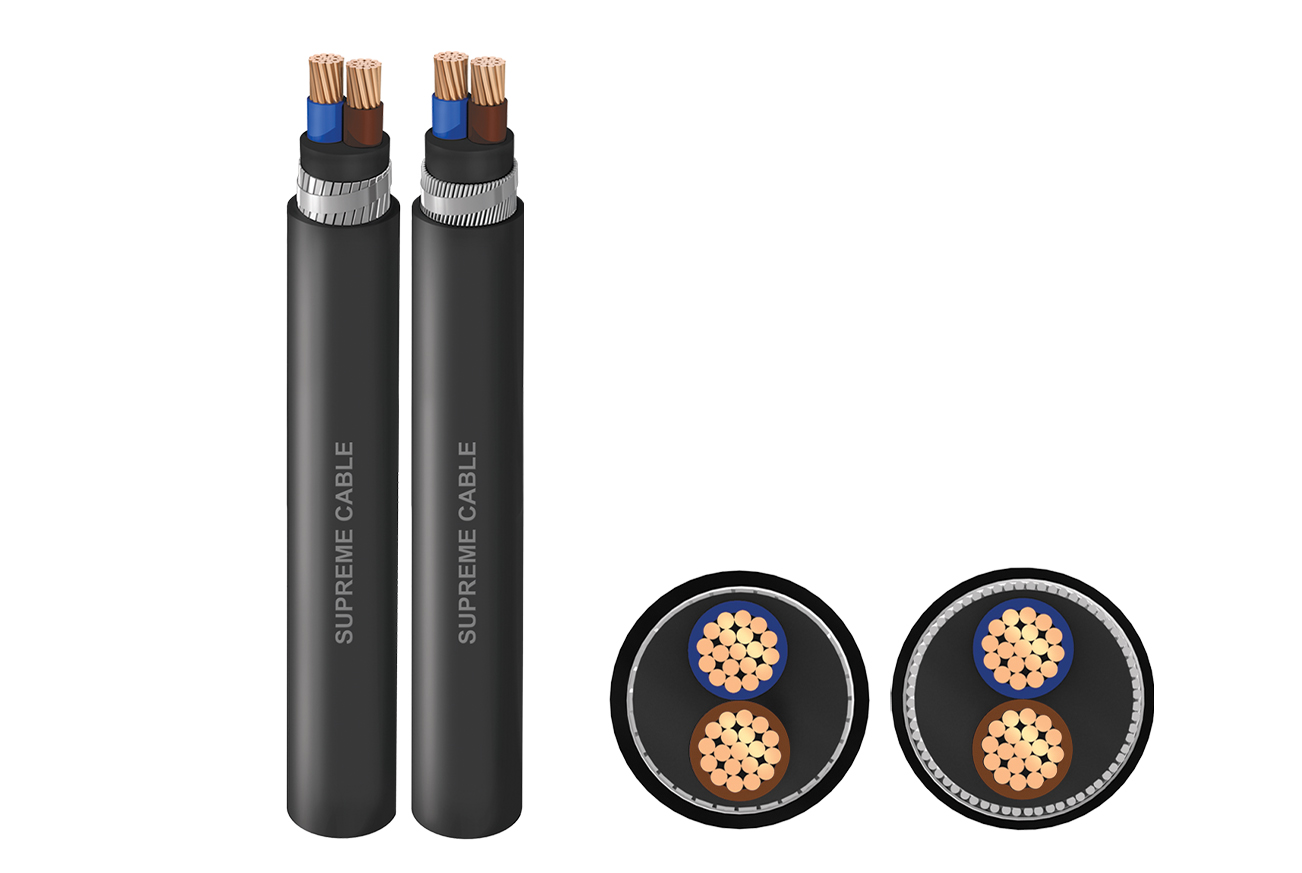

Cu/PVC/SWA/PVC (NYRGbY)
Cu/PVC/SFA/PVC (NYFGbY) 0.6/1(1.2) kV
IEC 60502-1 / SNI IEC 60502-1
Copper conductor, PVC insulated, Galvanized round steel wire or flat steel wire armoured and PVC sheathed cable
Main Uses : used for indoor and outdoor installation direct burial, preferably used where considerable mechanical strees must be envisaged

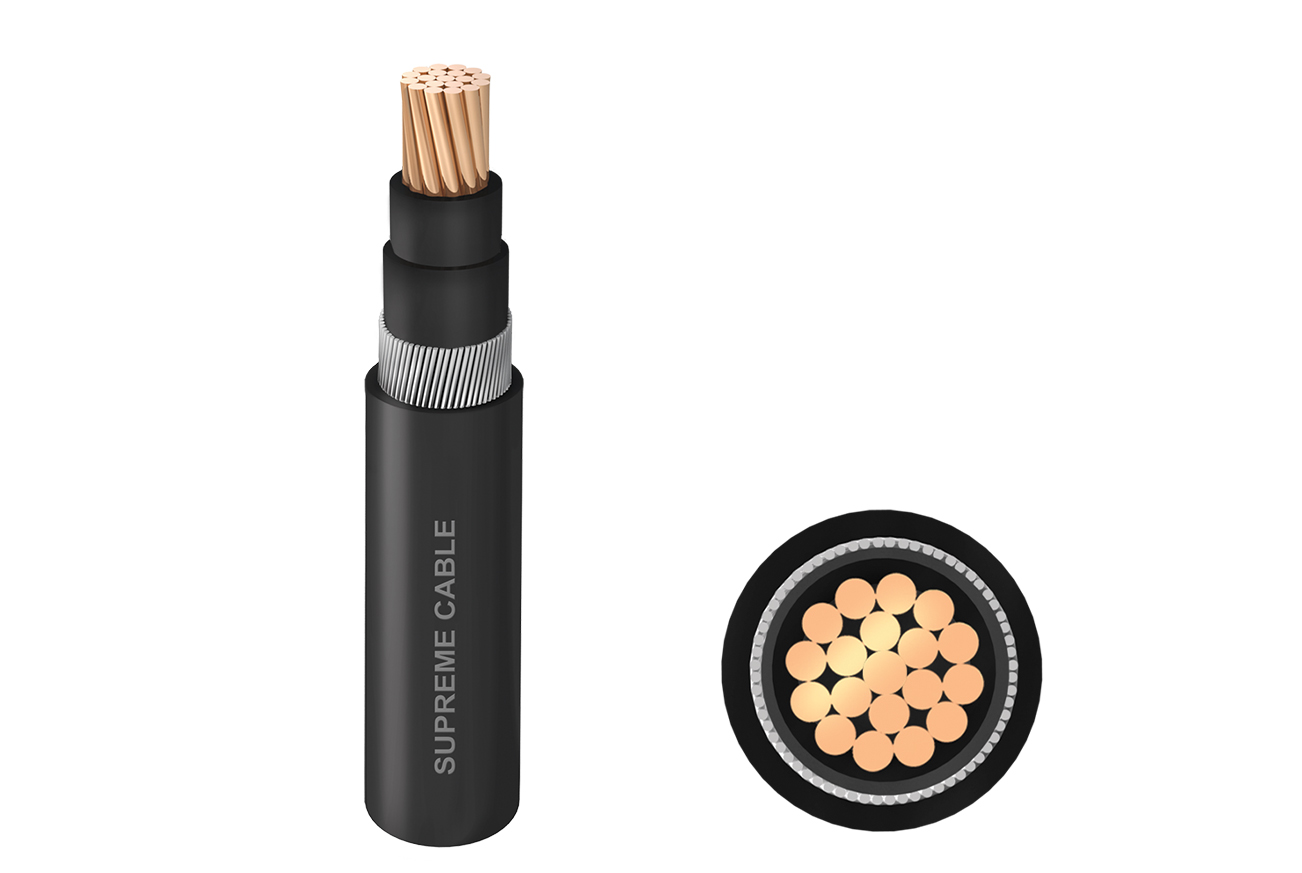

Cu/PVC/AWA/PVC (NYRY) 0.6/1 kV
IEC 60502-1 / SNI IEC 60502-1
Copper conductor, PVC insulated, Galvanized round steel wire or flat steel wire armoured and PVC sheathed cable
Main Uses : used for indoor and outdoor installation direct burial, preferably used where considerable mechanical strees must be envisaged

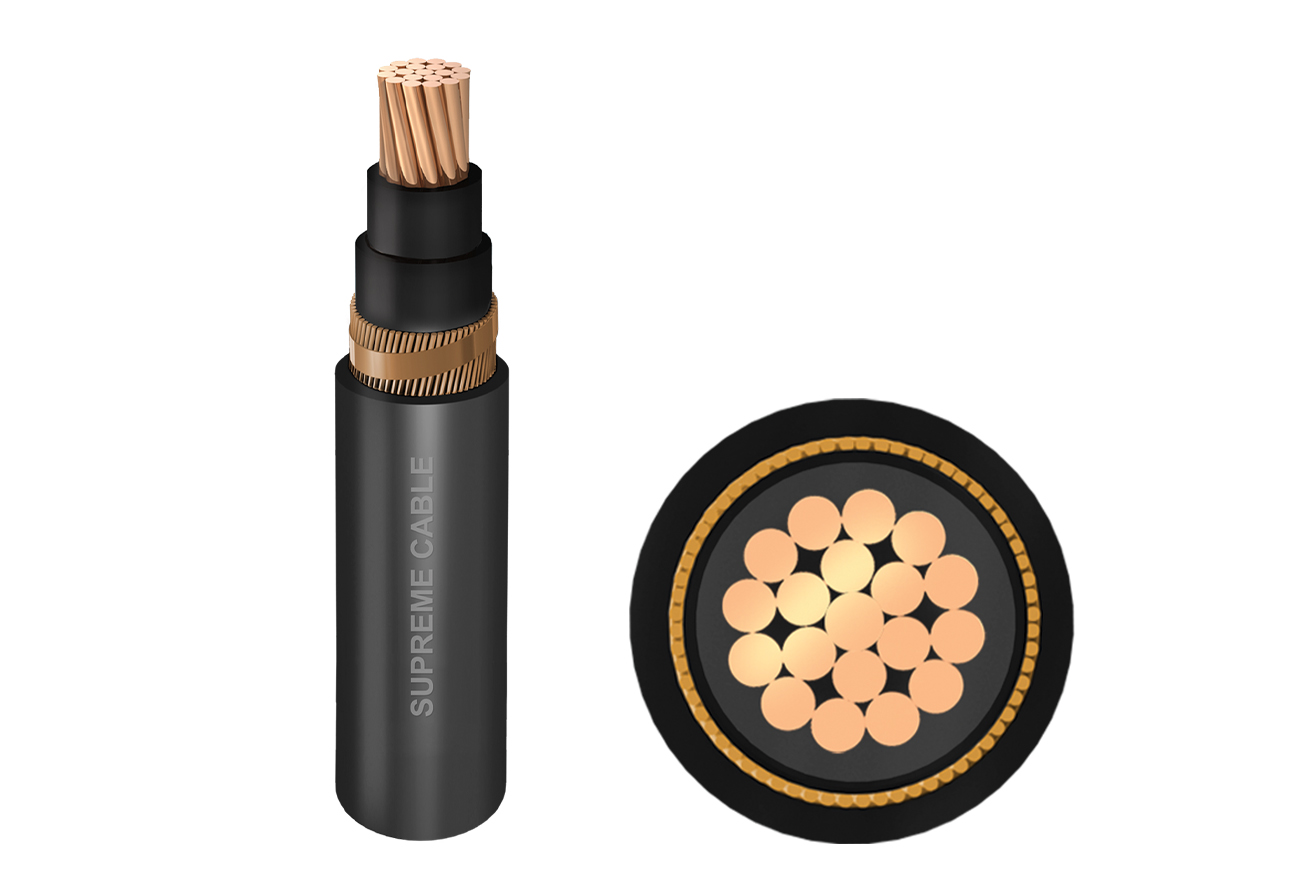

Cu/PVC/CTS/PVC (NYSY) 0.6/1(1.2) kV
IEC 60502-1/ SNI IEC 60502-1
Copper conductor, PVC insulated, copper tape screened and PVC sheathed cable
Main Uses : used for indoor, in ducts installation for laying in the ground, where not sustain mechanical damage
